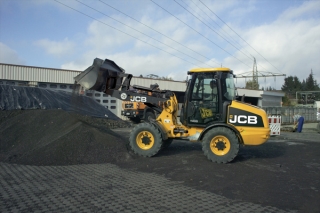

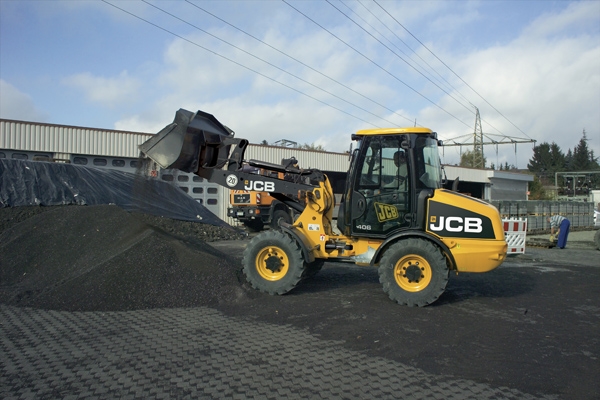

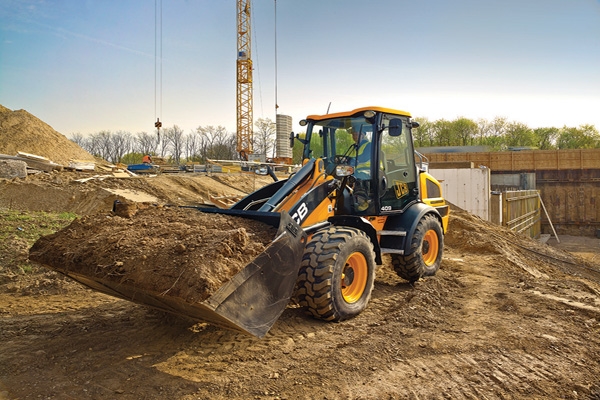

409 ZX Wheel Loader

The 409 is a highly productive wheel loader with the compact dimensions, performance, versatility, agility and uncompromised productivity you'd expect from JCB. It's fitted with a 55.4 kW engine that produces 300 Nm of torque, powering a 2-speed hydrostatic transmission and a load over height 3189 mm.

Max Engine Power 56KW / 74hp

Bucket Capacity1m3

Max. Operating Weight5820kg


Sales Enquiry Parts

Overview

This loading shovel also features superior quality components, comfort and ergonomics aplenty, excellent build quality, stringent safety levels and straightforward serviceability.

In short, it's a perfect tool carrier on farms and construction sites alike.

SAFETY AND SECURITY

The JCB 409 wheel loader can be equipped with a new immobiliser option, which can help prevent thefts from your fleet.

Access steps are inclined, equally spaced and complemented by well positioned handles so that operators have three points of contact whenever they're entering or exiting the JCB 409 wheel loader's cab.

With no exhaust after treatment, our JCB Diesel by Kohler engines are extremely compact for uncompromised visibility. The sloping rear bonnet provides an unimpeded view, with the exhaust silencer and air intake filter both packaged out of sight.

We've fitted an in-cab electronic 2-stage quickhitch isolation system to prevent uncontrolled release of attachments on the 409 loading shovel.

SERVICEABILITY

Most T4F engines use a Diesel Particulate Filter (DPF) or SCR, requiring costly AdBlue fluid level maintenance or heat-resistant lube oils. The new Kohler engine designed by JCB doesn't, thus reducing service and running costs.

Operators and managers of the JCB 409 wheel loader can access vital information like machine running times and error alerts at the touch of a button on the in-cab display and if needed via JCB's LiveLink telematics system.

The JCB 409 has a cyclonic pre-filter which maximises air filtration and extends filter element service intervals significantly.

TOTAL PRODUCTIVITY

With our High Flow option, the JCB 409 compact wheel loader enjoys an extra 30 litres of hydraulic capacity for an enhanced 120.8l/min flow rate.

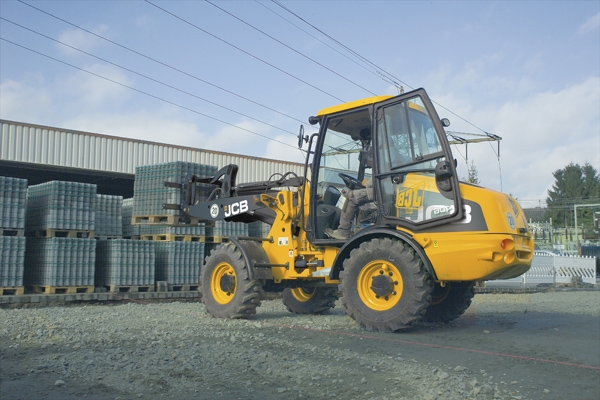

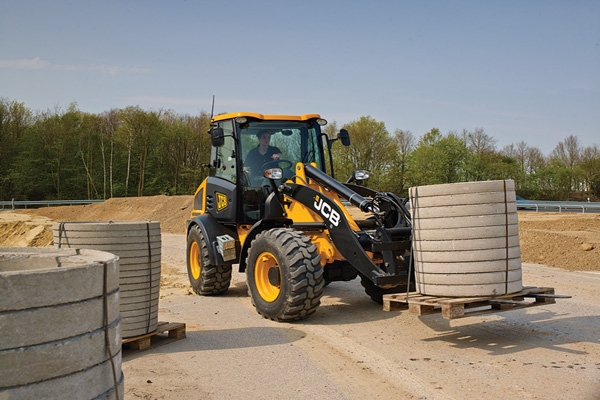

JCB's articulated steering boasts an easy-to-use built-in sideshift “ ideal for pallet handling.

The JCB 409 wheel loader is a highly versatile loading shovel, capable of many tasks, with plenty of options to create a perfect solution to your needs, as well as a huge range of easily interchangeable attachments.

Equip your wheel loader with our new towing option and you'll get a tow bar with rear electrics and hydraulics, allowing you to trailer loads of up to 3.5 tonnes or carry rear attachments like salt spreaders.

By splitting power between the transmission and the hydraulics, our inching pedal allows precise, efficient, stepless load handling.

QUALITY RELIABILITY AND DURABILITY

We've used only the very finest engine, driveline and axle components on the 409 wheel loader, from suppliers like DANA and Bosch

This loading shovel benefits from a strong chassis and the best possible weight distribution; this allows for optimal absorption of external forces.

We understand how tough materials handling can be, so we use a heavy-duty centre joint which oscillates through ±40°. Precision machining provides high tolerances and accurate location of pins and bushes on these loading shovels.

Rear lights are recessed within the solid counterweight casting for impact protection and hydraulic hoses are neatly routed, properly clamped, and positioned away from potential pinching spots.

We use state-of-the-art manufacturing processes, finite element analysis and extensive rig testing to achieve the very highest levels of quality. Cold cell testing guarantees starting performance at temperatures as low as -20°C.
